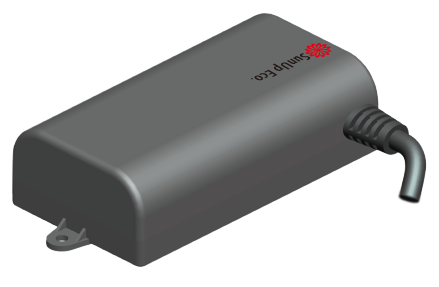

P6 Power Controller

From G6

DC5V / 300mA

DC3V / 200mA

Li-ion3.6V / 2600mAh

pin1 DC5V/300mA   @G6 250rpm

pin2 DC5V/1000mA @G6 750rpm

85X47X25mm and 100X50X25mm

ABS

G6 dedicated power controller”P6”

Specification

Input

Output

Battery

Run  Output



Dimension

Material

Features

01/

Auto wakeup system

If the spin bike is placed for too long and the battery is dead due to shipping or stock, just run the SunUp generators for 15 seconds then the console will be turned up.

02/

Safety Switches

To avoid battery overloaded. No overcharge, overvoltage or overcurrent.

03/

Power booster

Expand the using rang of speed of the generator.

04/

Direct signal transferred from the power controller

The signals of RPM, Wattage and battery capacity are transferred directly from the generator and power controller itself.

05/

Bluetooth

All the above information can be transferred directly from the built-in Bluetooth module to APP.
